The counter with panoramic glazing without corbels for superb visibility of goods.
- Connects to the remote refrigeration system
- Goods outlay depth 900 or 780 mm
- Dynamic or static cooling
- Front glass folding
- Energy-efficient fans
- Additional refrigerated box
- Setting the plafond backlight and sliding doors as an option
 |
 |
 |
 Missouri MC 120 deli OS 120-DBM (option)
(article: 1566.ХХ option)
|
 |
 Missouri MC 120 deli OS 120-DBM
(article: 1566.ХХ)
 Missouri MC 120 deli OS 120-DLM
(article: 1635.ХХ)
|
 |

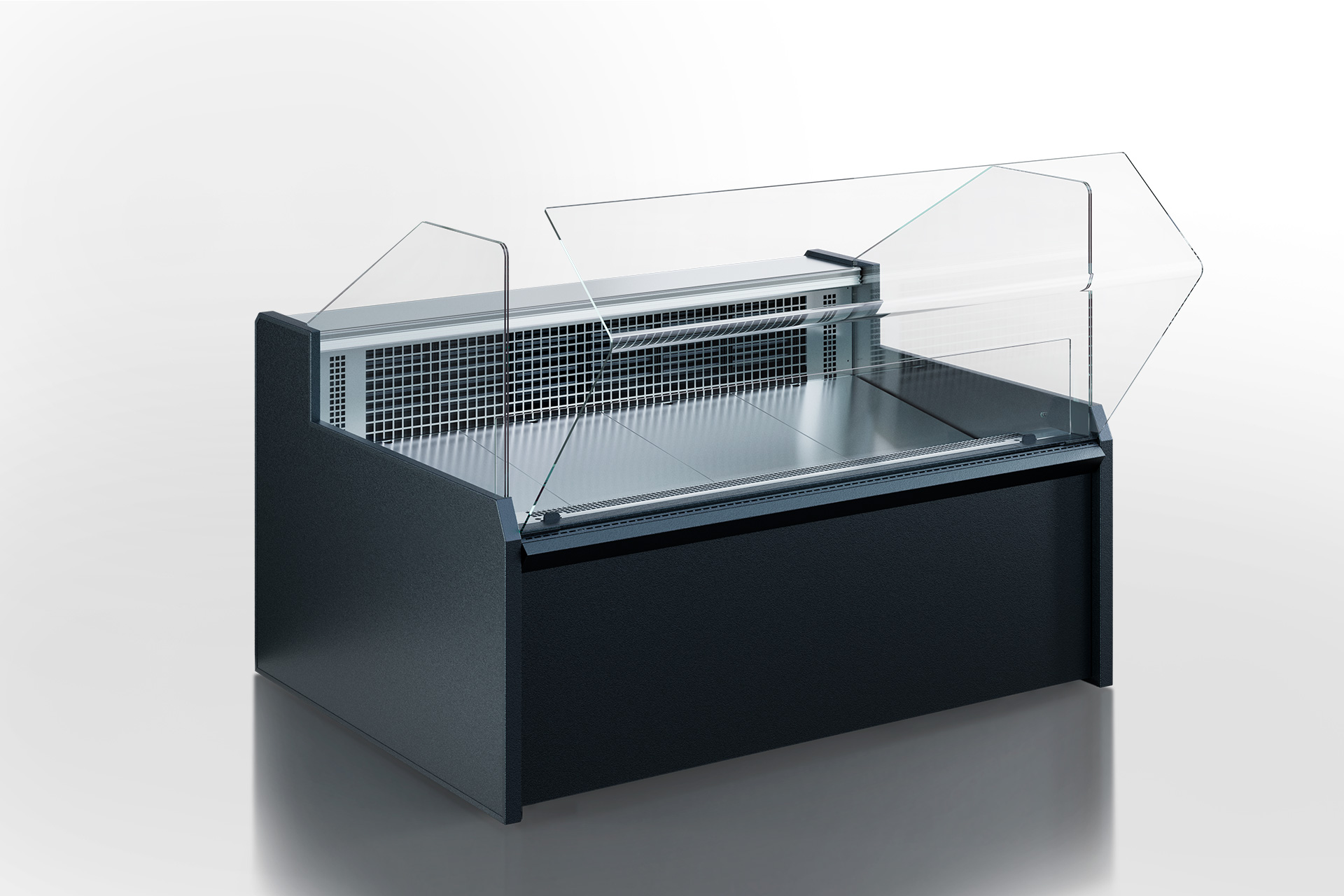

 Missouri MC 120 deli OS 120-SBM
(article: 1752.ХХ)
|
 |
 Missouri MC 120 deli OS 120-DBM
(option 2 – containers) (article: 1566.ХХ option 2) |
 |
 Missouri MC 120 deli OS 120-DBM
(option 3 – containers)
(article: 1566.ХХ option 3)
|
 |
The Manufacturer reserves the right to make alterations in the specifications.
| Missouri MC 120 deli OS 120-DBM (1599) | ||||||||
| Length without sidewalls | mm | 937 | 1250 | 1500 | 1875 | 2500 | 3000 | 3750 |
| Thickness of two sidewalls | mm | 80 | ||||||
| Area of display surface | m2 | 0,8 | 1,1 | 1,3 | 1,7 | 2,2 | 2,8 | 3,4 |
| Refrigerated box capacity | l | 125 | 170 | 200 | 257 | 345 | 414 | 520 |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | – | ||||||
| Operating temperature | ˚С | 0…+2 / +2…+4 | ||||||
| Temperature class | М1/М2 | |||||||
| Missouri MC 120 deli OS 120-DLM (1635) | |||||||
| Length without sidewalls | mm | 937 | 1250 | 1500 | 1875 | 2500 | 3750 |
| Thickness of two sidewalls | mm | 80 | |||||
| Area of display surface | m2 | 0,8 | 1,1 | 1,3 | 1,7 | 2,2 | 3,4 |
| Ambient temperature | ˚С | ≤ +25 | |||||
| Humidity | % | ≤ 60 | |||||
| Air velocity | m/s | – | |||||
| Operating temperature | ˚С | 0…+2 / +2…+4 | |||||
| Temperature class | М1/М2 | ||||||

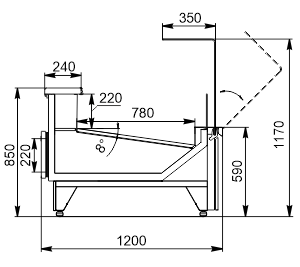

| Missouri MC 120 deli OS 120-SBM (1752) | |||||||
| Length without sidewalls | mm | 937 | 1250 | 1500 | 1875 | 2500 | 3750 |
| Thickness of two sidewalls | mm | 80 | |||||
| Area of display surface | m2 | 0,72 | 0,97 | 1,16 | 1,45 | 1,94 | 2,91 |
| 180 | 240 | 290 | 360 | 480 | 740 | ||
| Ambient temperature | ˚С | ≤ +25 | |||||
| Humidity | % | ≤ 60 | |||||
| Air velocity | m/s | – | |||||
| Operating temperature | ˚С | 0…+2 / +2…+4 | |||||
| Temperature class | М1/М2 | ||||||
* – it requires an additional agreement (marked in red)
The Manufacturer reserves the right to make alterations in the specifications.
