Angular elements of Missouri AC 120 model range allow building lines of any complexity and structure.
- Fits with plug-in
- Dynamic or static cooling
- Uplift and holding of front glass with the help of gas-lift system
- Inner enclosure LED lighting
- Additional refrigerated box
 |
 |
 |

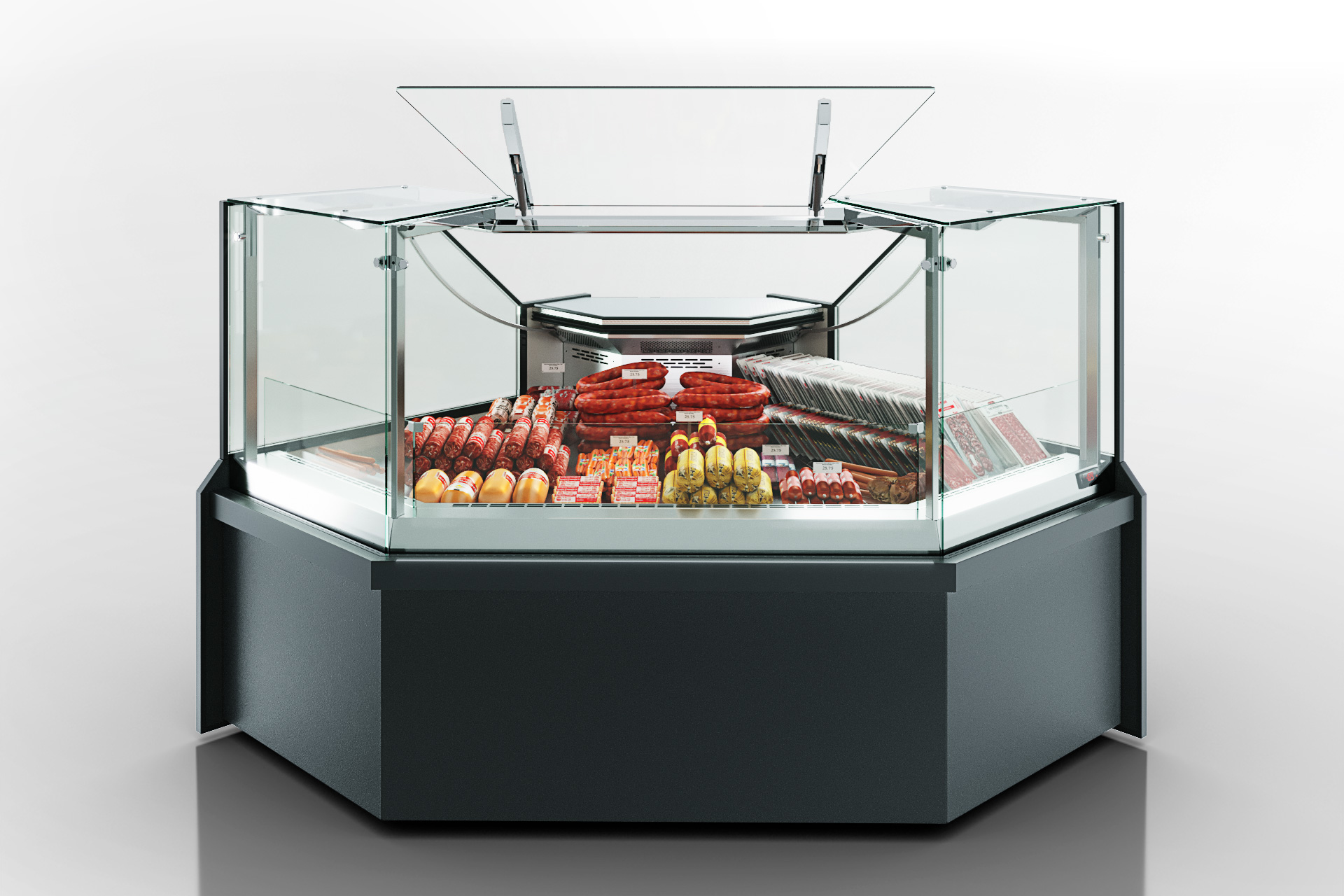

 Missouri AC 120 deli PP 130-DLA-ES90
(аrticle: 1382.А.00)
|
 |
 Missouri АC 120 deli PP 130-SBА-IS90
(аrticle: 1416.А.00)
|
 |
 Missouri АC 120 deli PP 130-DBА-IS90
(аrticle: 1396.А.00)
|
 |
The Manufacturer reserves the right to make alterations in the specifications.
| Missouri АC 120 deli PP 130 | Missouri АC 120 deli PP 130 | |||
| Angular elements | DLA-ES90 | DBA-IS90 | SBА-IS90 | |
| Thickness of two sidewalls | mm | 60 | 60 | |
| Area of display part | m2 | 1,34 | 1,36 | 1,1 |
| Refrigerated box capacity | l | – | 106 | 278 |
| Ambient temperature | ˚С | ≤ +25 | ≤ +25 | |
| Humidity | % | ≤ 60 | ≤ 60 | |
| Air velocity | m/s | – | – | – |
| Operating temperature | ˚С | 0…+2 /+2…+4 | 0…+2 /+2…+4 | 0…+2 /+2…+4 |
| Temperature class | М1/М2 | М1/М2 | ||
The Manufacturer reserves the right to make alterations in the specifications.
