Self-service counter with cascaded goods layout.
- Connects to the remote refrigeration system
- Dynamic cooling
- Display part shelves LED lighting (option)
- Energy-efficient fans
- Additional refrigerated box
 |
 |
 |
 |
 Missouri enigma MC 122 cascade self 130-DBM
(article: 1611.XX)
|
 |
 Missouri enigma MC 122 cascade self 160-DBM
(article: 1607.XX)
|
 |
The Manufacturer reserves the right to make alterations in the specifications.

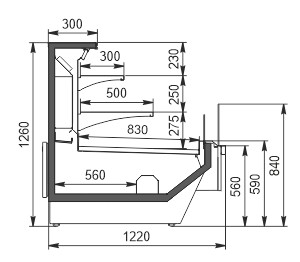

| Missouri enigma MC 122 cascade self 130-DBM | |||||||
| Length without sidewalls | mm | 937 | 1250 | 1875* | 2500* | 3125* | 3750 |
| Thickness of two sidewalls | mm | 120 | |||||
| Area of display part | m2 | 1,5 | 2,0 | 3,1 | 4,1 | 5,1 | 6,1 |
| Refrigerated box capacity | l | 163 | 218 | 325 | 435 | 544 | 653 |
| Ambient temperature | ˚С | ≤ +25 | |||||
| Humidity | % | ≤ 60 | |||||
| Air velocity | m/s | ≤ 0,2 | |||||
| Operating temperature | ˚С | +2…+4 | |||||
| Temperature class | М2 | ||||||

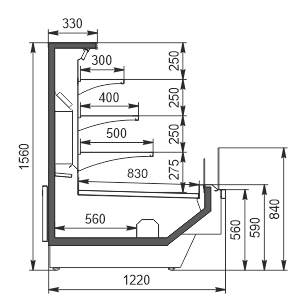

| Missouri Enigma MC 122 cascade self 160-DBM | ||||||||
| Length without sidewalls | mm | 937* | 1250* | 1500* | 1875 | 2500 | 3000* | 3750 |
| Thickness of two sidewalls | mm | 120 | ||||||
| Area of display part | m2 | 1,9 | 2,5 | 3,1 | 3,8 | 5,0 | 6,3 | 7,6 |
| Refrigerated box capacity | l | 163 | 218 | 250 | 325 | 435 | 544 | 653 |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | ≤ 0,2 | ||||||
| Operating temperature | ˚С | +2…+4 | ||||||
| Temperature class | М2 | |||||||
* – it requires an additional agreement (marked in red)
The Manufacturer reserves the right to make alterations in the specifications.
