Semi-vertical counters for Flowers sales.
- Fits with plug-in
- Dynamic cooling
- Tilted lay-out
 |
|
|
 Louisiana eco F ASV 105 VF O 180-DLA
(аrticle: 0280.АF.ХХ)
|
 |

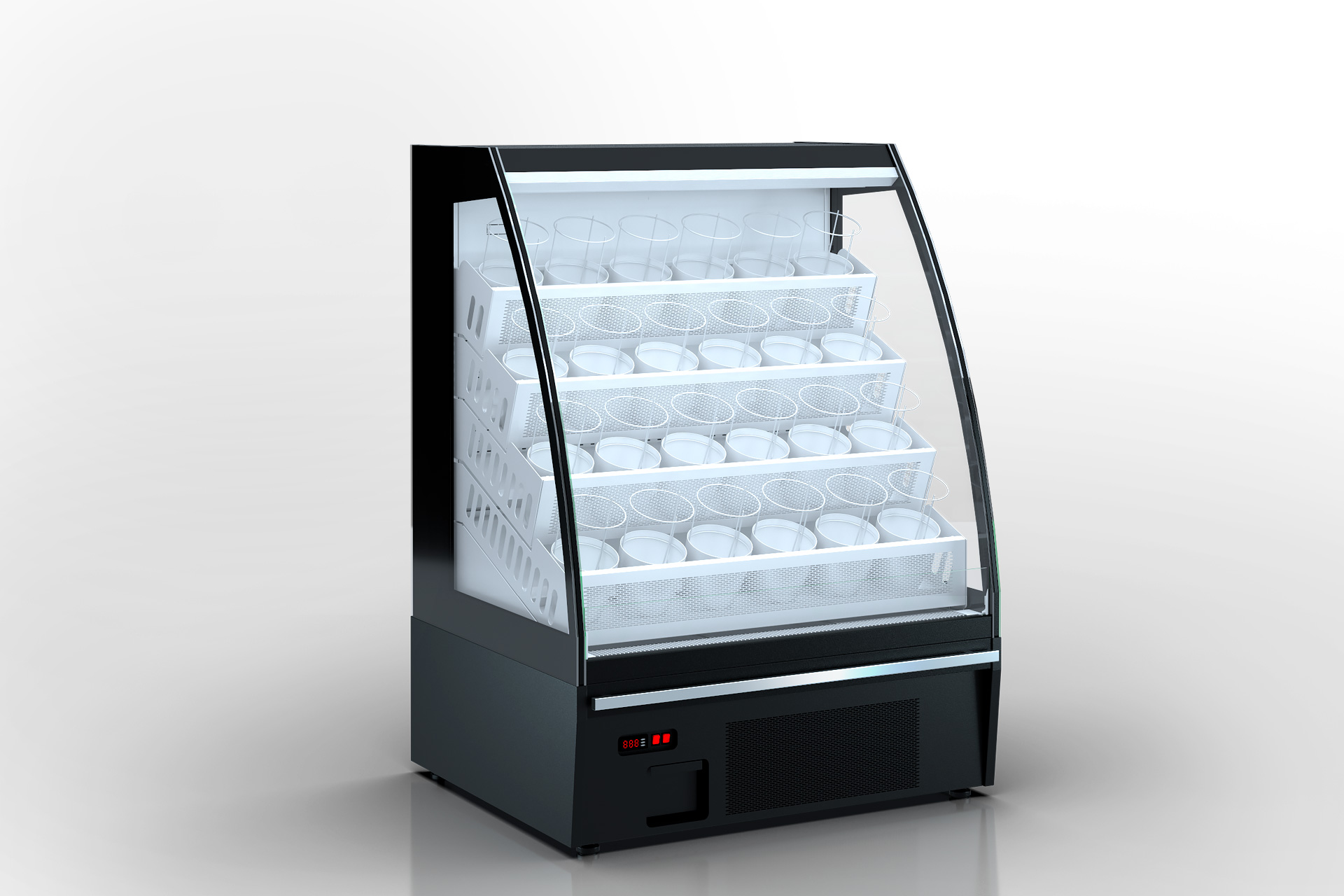

 Louisiana eco F ASV 105 VF O 180-DLA
(option)
(аrticle: 0280.АF.ХХ option)
(Location of shelves
for placing only low flowers
in vases or flowerpots)
|
 |

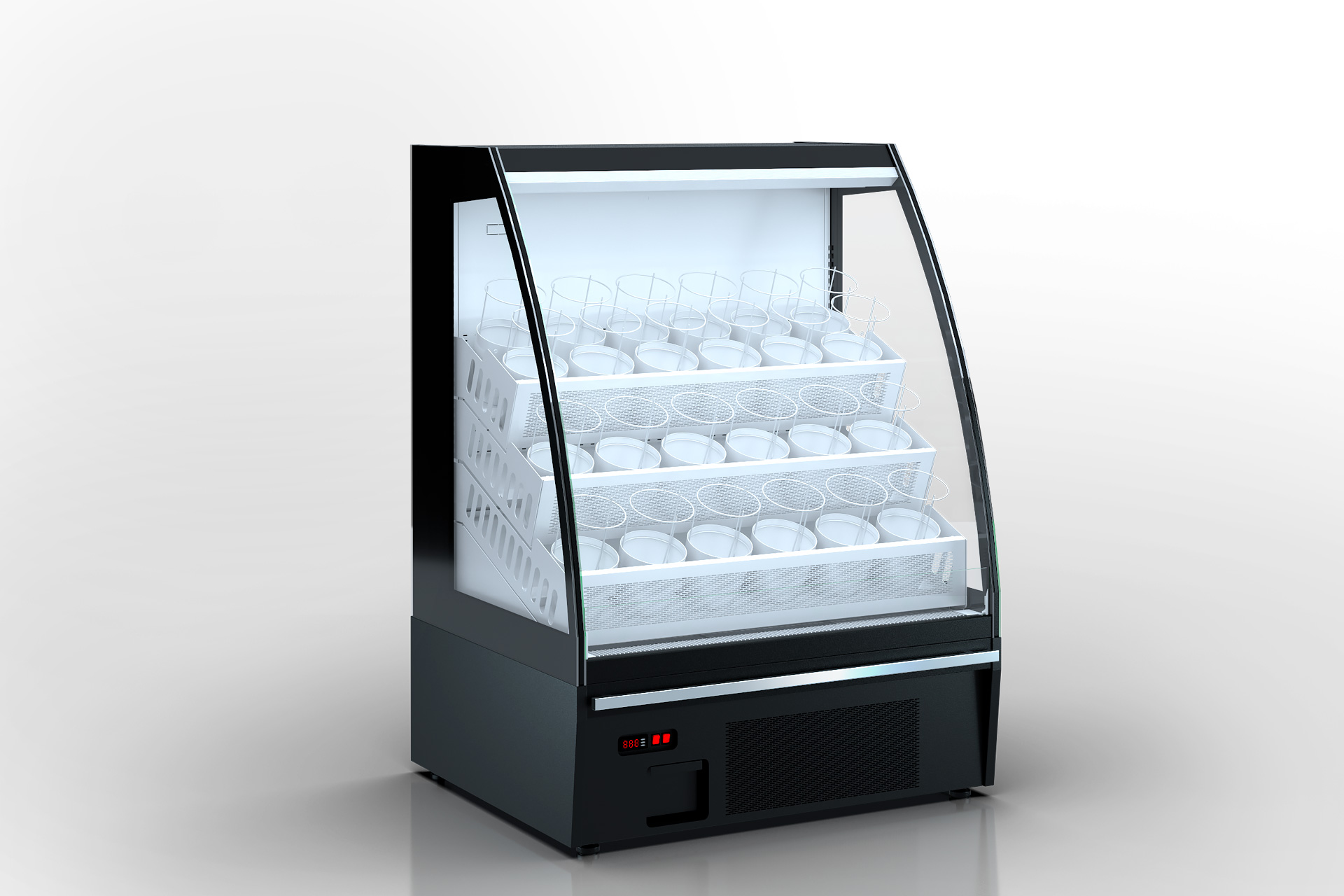

 Louisiana eco F ASV 105 VF O 180-DLA
(option 1)
(аrticle: 0280.АF.ХХ option 1)
(Location of shelves for
placing only low flowers in
vases or flowerpots)
|
 |
 Louisiana eco F ASV 105 VF O 180-DLA
(option 2)
(аrticle: 0280.АF.ХХ option 2)
(Location of shelves for
placing higher flowers in
vases or flowerpots)
|
 |
 Louisiana eco F ASV 105 VF O 180-DLA
(option 3)
(аrticle: 0280.АF.ХХ option 3)
(Location of shelves for
placing higher flowers in
vases or flowerpots)
|
 |

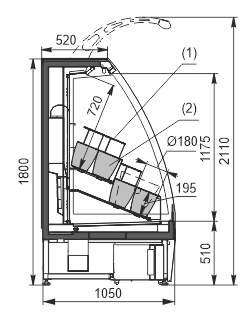

(1) – Wire mount for high flowers
(2) – Plastic flowerpots 24 pcs.
The Manufacturer reserves the right to make alterations in the specifications.
| Louisiana eco F ASV 105 VF O 180-DLA | ||||
| Length without sidewalls | mm | 1250 | 1875* | 2500 |
| Thickness of two sidewalls | mm | 60 | ||
| Ambient temperature | ˚С | ≤ +25 | ||
| Humidity | % | ≤ 60 | ||
| Air velocity | m/s | ≤ 0,2 | ||
| Operating temperature | ˚С | +4…+8 | ||
| Temperature class | H1 | |||
* – it requires an additional agreement (marked in red)
The Manufacturer reserves the right to make alterations in the specifications.
