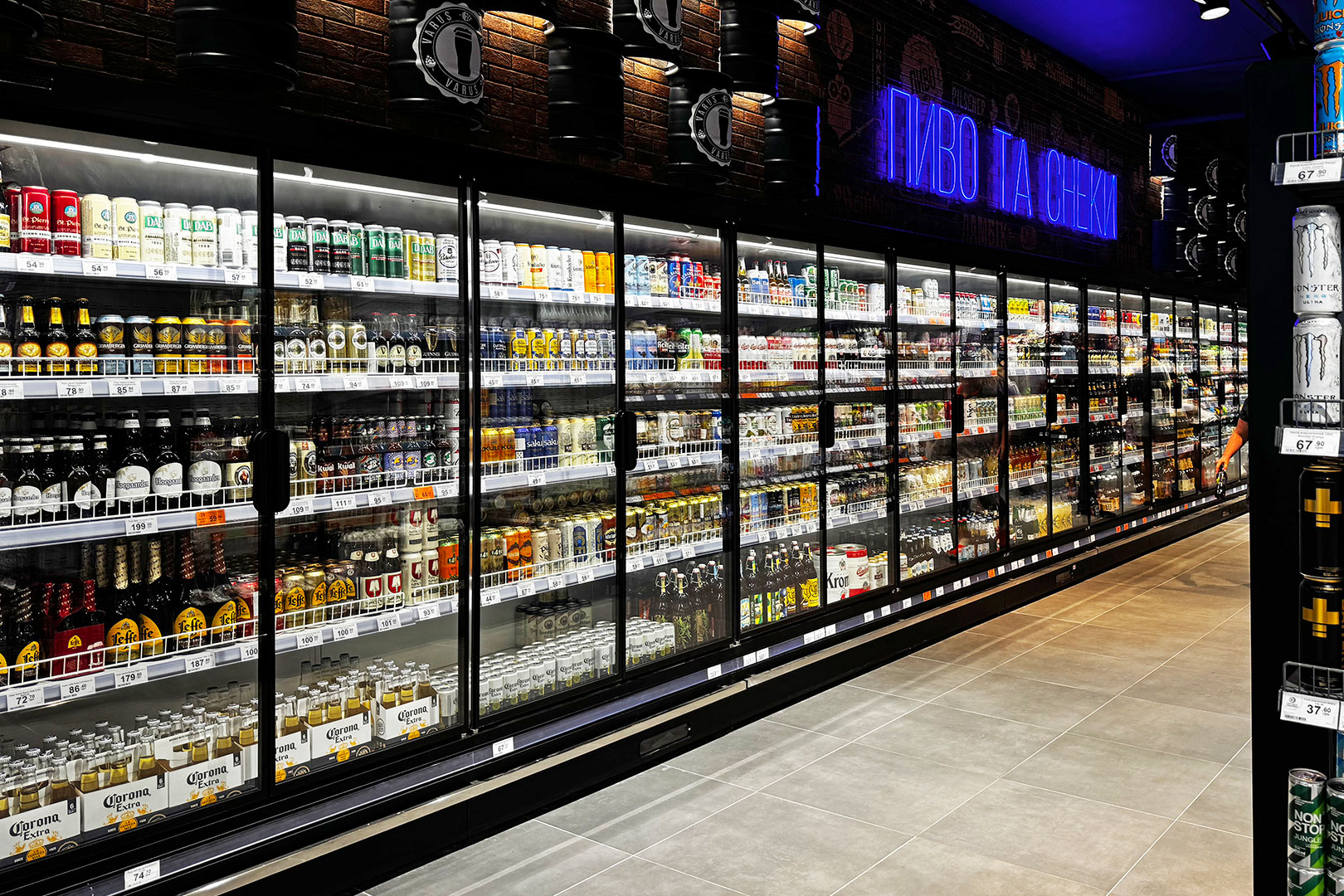

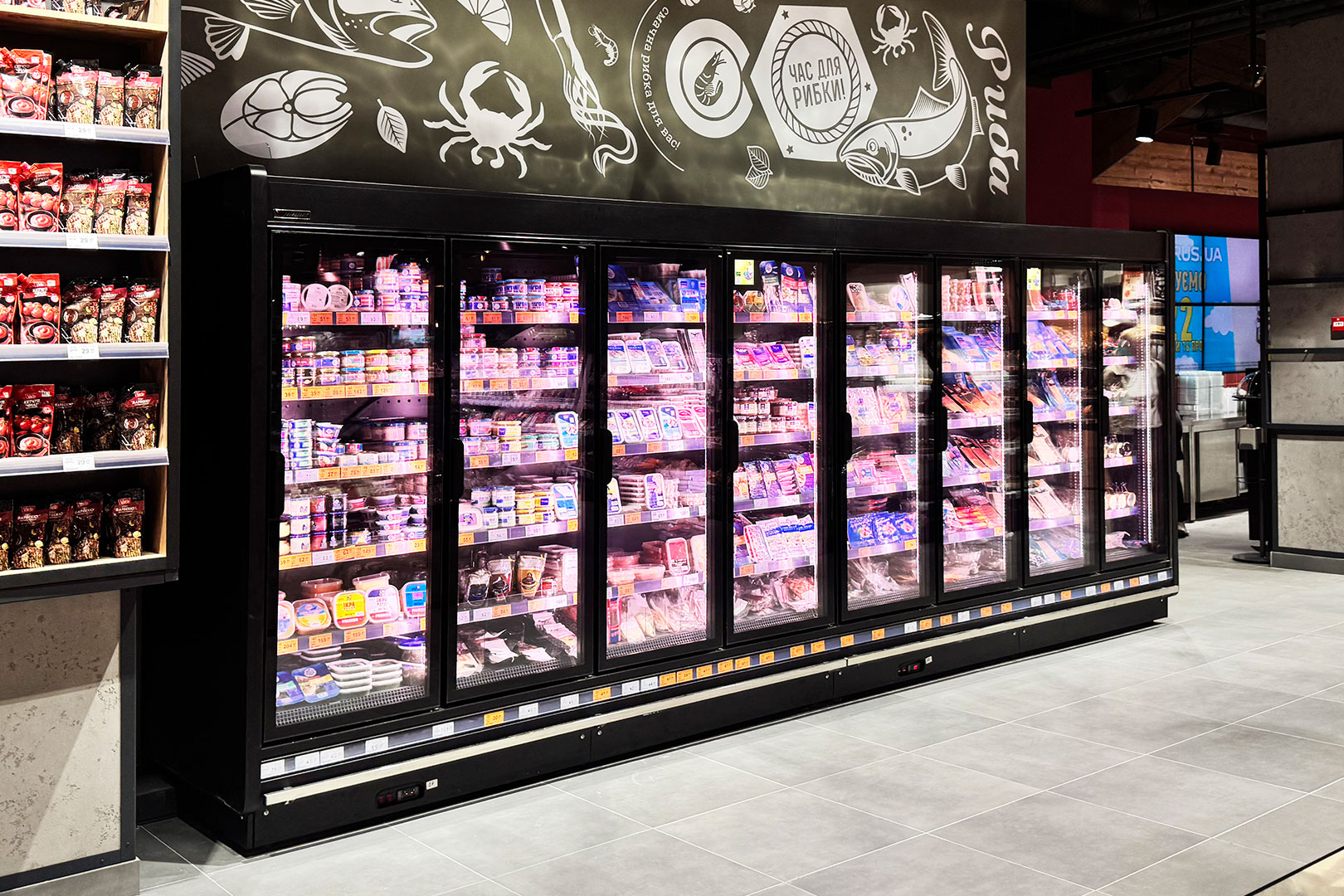

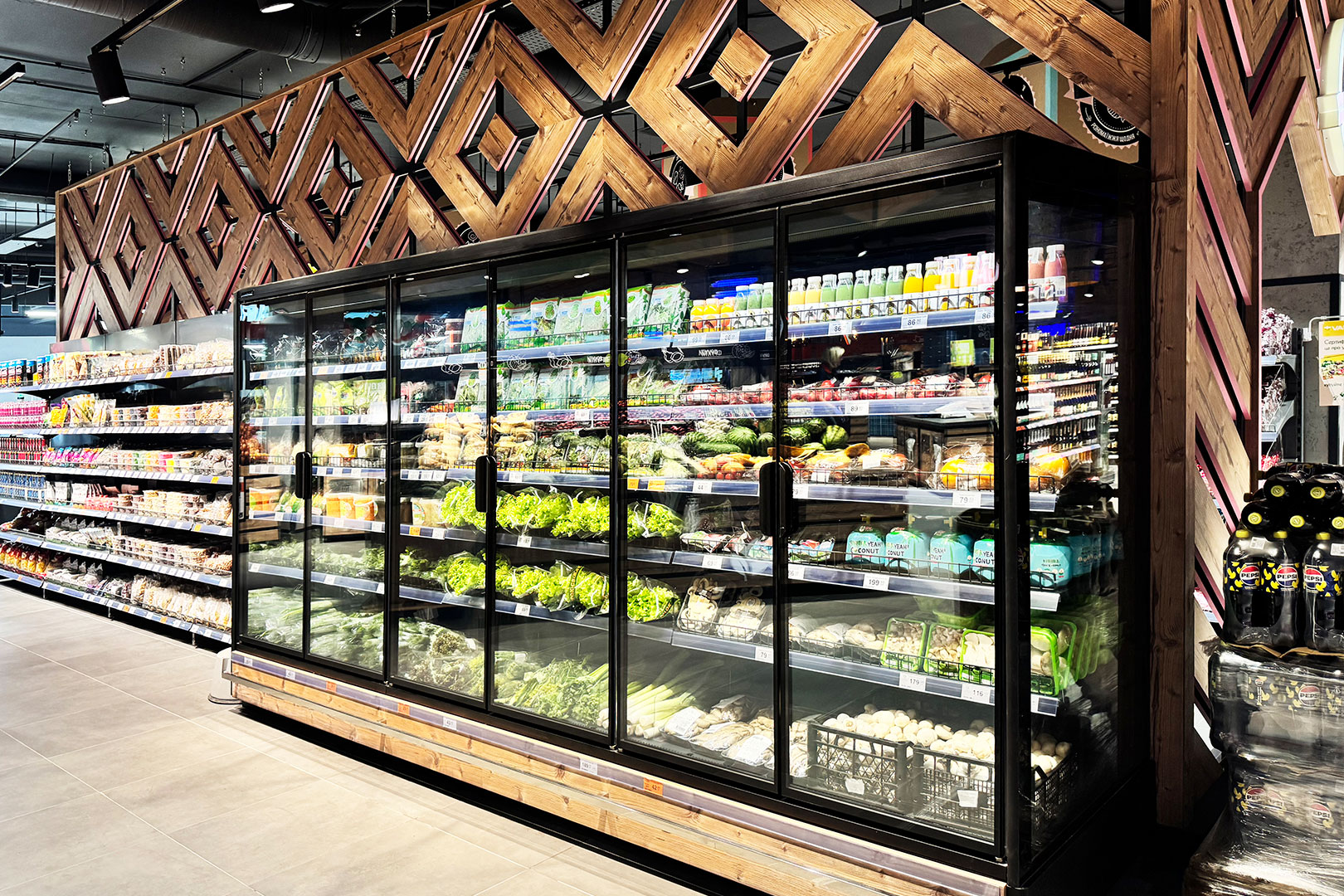

Multideck cabinet with infinity energy-efficient doors is for the stores of any format.
- Connects to the remote refrigeration system
- Dynamic cooling
- Inner enclosure LED lighting
- Energy-efficient fans
- Slide-doors
 |
 |
 |
 |
 |
 |
 |
3750 |
 Louisiana 5 MV 095 MT D 210-DLM(article: 2037.SD.XX)
|
 |
 Louisiana 5 MV 095 MT D 225-DLM(article: 2037.MD.XX)
|
|
 Louisiana 5 MV 105 MT D 210-DLM
(article: 2038.SD.XX)
|
|
 Louisiana 5 MV 105 MT D 225-DLM
(article: 2038.MD.XX)
|
|
 Louisiana 5 MV 115 MT D 210-DLM
(article: 2039.SD.XX)
|
|
 Louisiana 5 MV 115 MT D 225-DLM
(article: 2039.MD.XX)
|
|
The Manufacturer reserves the right to make alterations in the specifications.
| Louisiana 5 MV 095 MT D 210-DLM | ||||||||
| Length without sidewalls | mm | 937 | 1250 | 1875 | 2150 | 2500 | 3125 | 3750 |
| Area of display part | m2 | 2,44 | 3,25 | 4,88 | 5,59 | 6,50 | 8,13 | 9,75 |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | – | ||||||
| Operating temperature | ˚С | 0…+2/+2…+4/+4…+6 | ||||||
| Temperature class | M1/M2/H1 | |||||||
| Louisiana 5 MV 095 MT D 225-DLM | ||||||||
| Length without sidewalls | mm | 937* | 1250 | 1875 | 2150* | 2500 | 3125* | 3750 |
| Area of display part | m2 | 2,44 | 3,25 | 4,88 | 5,59 | 6,50 | 8,13 | 9,75 |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | – | ||||||
| Operating temperature | ˚С | 0…+2/+2…+4/+4…+6 | ||||||
| Temperature class | M1/M2/H1 | |||||||
| Louisiana 5 MV 105 MT D 210-DLM | ||||||||
| Length without sidewalls | mm | 937* | 1250 | 1875 | 2150* | 2500 | 3125 | 3750 |
| Area of display part | m2 | – | 4,00 | 6,00 | – | 8,00 | 10,00 | 12,00 |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | – | ||||||
| Operating temperature | ˚С | 0…+2/+2…+4/+4…+6 | ||||||
| Temperature class | M1/M2/H1 | |||||||
| Louisiana 5 MV 105 MT D 225-DLM | ||||||||
| Length without sidewalls | mm | 937* | 1250 | 1875 | 2150* | 2500 | 3125* | 3750 |
| Area of display part | m2 | – | 4,00 | 6,00 | – | 8,00 | 10,00 | 12,00 |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | – | ||||||
| Operating temperature | ˚С | 0…+2/+2…+4/+4…+6 | ||||||
| Temperature class | M1/M2/H1 | |||||||
| Louisiana 5 MV 115 MT D 210-DLM | ||||||||
| Length without sidewalls | mm | 937* | 1250 | 1875 | 2150* | 2500 | 3125* | 3750 |
| Area of display part | m2 | – | 4,75 | 7,13 | – | 10,00 | – | 14,25 |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | – | ||||||
| Operating temperature | ˚С | 0…+2/+2…+4/+4…+6 | ||||||
| Temperature class | M1/M2/H1 | |||||||
| Louisiana 5 MV 115 MT D 225-DLM | ||||||||
| Length without sidewalls | mm | 937* | 1250 | 1875 | 2150* | 2500 | 3125* | 3750 |
| Area of display part | m2 | – | 4,75 | 7,13 | – | 10,00 | – | 14,25 |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | – | ||||||
| Operating temperature | ˚С | 0…+2/+2…+4/+4…+6 | ||||||
| Temperature class | M1/M2/H1 | |||||||
* – it requires an additional agreement (marked in red)
The Manufacturer reserves the right to make alterations in the specifications.
