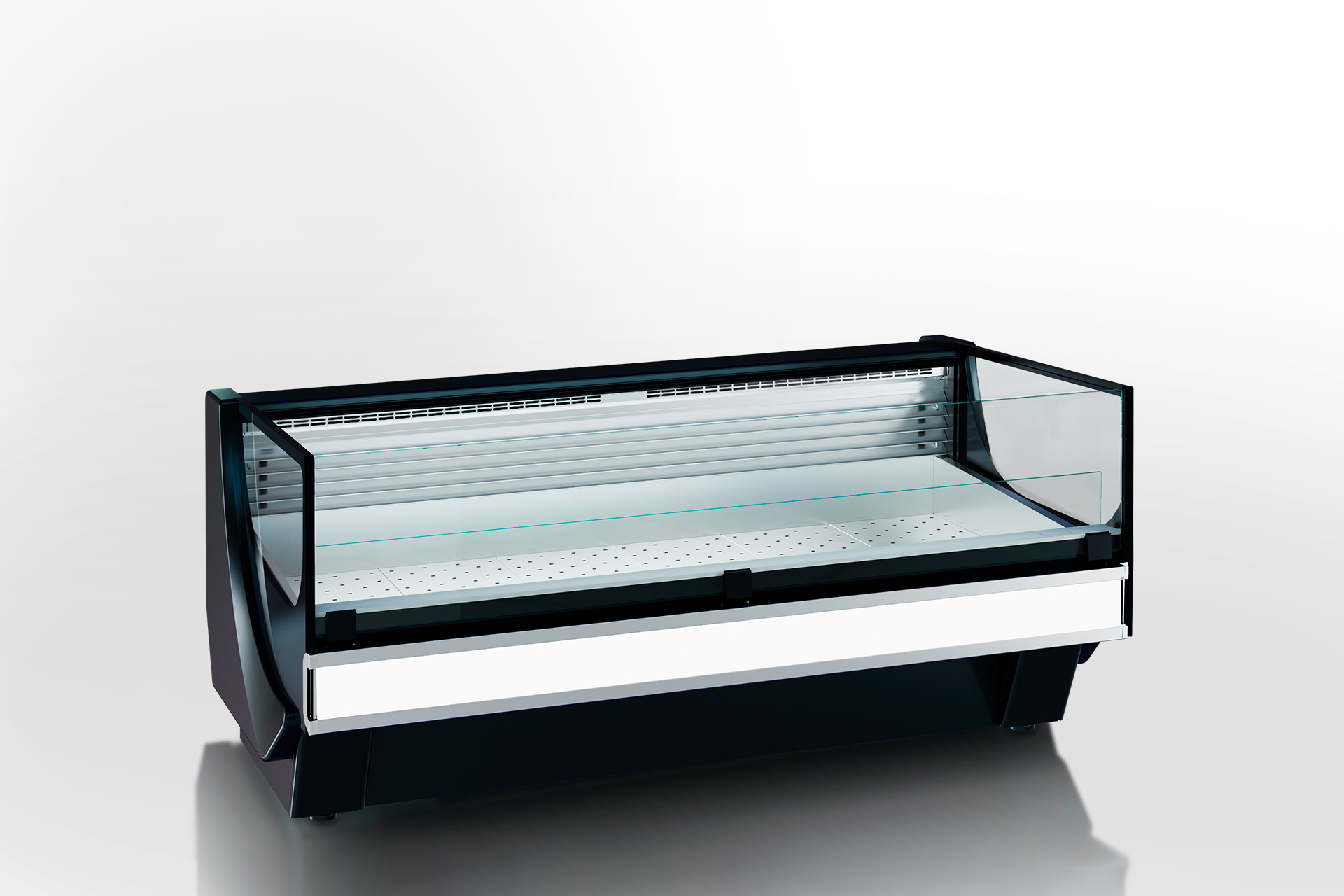

Refrigerated counters Missouri cold diamond MC 115 fish PS 121-SPLM/SPLA
Specialized counter with additional refrigerated tray for fish-on-ice sales.
  • Connects to the remote refrigeration system or fits with plug-in
  • Goods outlay depth 870 mm
  • Static cooling
  • Uplift and holding of front glass with the help of gas-lift system
  • Inner enclosure LED lighting
  • Stainless steel inner enclosure
Fish-on-ice

Visualizations and schemes

Refrigerated counters Missouri cold diamond MC 115 fish PS 121-SPLM/SPLA
Missouri cold diamond MC 115 fish PS 121-SPLM
with the additional refrigerated pan
(article: 1458.ХХ)
/
Missouri cold diamond MC 115 fish PS 121-SPLA
with the additional refrigerated pan
(article: 1458.A.ХХ)
Refrigerated counters Missouri cold diamond MC 115 fish PS 121-SPLM/SPLA
Refrigerated counters Missouri cold diamond MC 115 fish PS 2 121-SPLAMissouri cold diamond MC 115 fish PS 2 121-SPLA
with the additional refrigerated pan
(article: 1540.A.ХХ)
Refrigerated counters Missouri cold diamond MC 115 fish PS 2 121-SPLA
Refrigerated counters Missouri cold diamond MC 115 self 084-SPLM/SPLAMissouri cold diamond MC 115 self 084-SPLM
with the additional refrigerated pan
(article: 1458.ХХ self)
/
Missouri cold diamond MC 115 self 084-SPLA
with the additional refrigerated pan
(article: 1458.A.ХХ self)
Refrigerated counters Missouri cold diamond MC 115 self 084-SPLM/SPLA

The Manufacturer reserves the right to make alterations in the specifications.

Specifications

Missouri cold diamond MC 115 fish PS 121-SPLM Missouri cold diamond MC 115 fish PS 121-SPLA
Length without sidewalls mm 937 1250 1875 2500* 937 1250 1875 2500
Thickness of two sidewalls mm 120 120
Area of display part m2 0,8 1,0 1,6 2,1 0,8 1,0 1,6 2,1
Ambient temperature ˚С ≤ +25 ≤ +25
Humidity % ≤ 60 ≤ 60
Air velocity m/s – –
Operating temperature ˚С -1…+1 -1…+1
Temperature class M0 M0
Missouri cold diamond MC 115 fish PS 2 121-SPLM
Length without sidewalls mm 937* 1250* 1500* 1875* 2500
Thickness of two sidewalls mm 120
Area of display part m2 0,8 1,1 1,3 1,6 2,1
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С -1…+1
Temperature class M0
Missouri cold diamond MC 115 self 084-SPLM/SPLA
Length without sidewalls mm 937 1250 1500* 1875 2500*
Thickness of two sidewalls mm 120
Area of display part m2 0,7 0,8 1,0 1,6 2,1
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s ≤ 0,2
Operating temperature ˚С -1…+1
Temperature class M0

* – it requires an additional agreement (marked in red)
