Indiana 3/2 MV 070/080/090 MT D M

////Indiana 3/2 MV 070/080/090 MT D M
Multideck cabinet is for the stores of any format.
  • Connects to the remote refrigeration system
  • Dynamic cooling
  • Inner enclosure LED lighting
Salami & Sausages Cheese Dairy products Ready-to-serve food
Confectionery Beverages



Information related to energy class (Ecodesign Regulation 2019/2024 and Energy Labelling Regulation 2019/2018) refers to specific product configurations. All configurations other than that presented in the website could require significantly different energy class information. For further details, either consult the European Product Database for Energy Labelling (EPREL) or contact our sales office.

1250

Visualizations and schemes

Refrigerated multideck Indiana 2 MV 070 MT D 205-DLM (sliding/hinged doors)
Indiana 2 MV 070 MT D 205-DLM
(sliding/hinged doors)
(article: 2040.SD.ХХ)
Refrigerated multideck Indiana 2 MV 070 MT D 205-DLM (hinged doors)
Refrigerated multideck cabinets Indiana 2 MV 080 MT D 205-DLM (sliding/hinged doors)
Indiana 2 MV 080 MT D 205-DLM
(sliding/hinged doors)
(article: 2041.SD.ХХ)
Refrigerated multideck Indiana 2 MV 080 MT D 205-DLM (sliding doors)
Refrigerated multideck cabinets Indiana 2 MV 080 MT D 220-DLM (sliding/hinged doors)
Indiana 2 MV 080 MT D 220-DLM
(sliding/hinged doors)
(article: 2041.MD.ХХ)
Refrigerated multideck Indiana 2 MV 080 MT D 220-DLM (sliding doors)

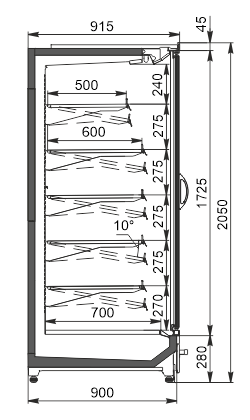

Indiana 3 MV 090 MT D 205-DLM
(article: 2084.SD.ХХ)
Refrigerated multideck Indiana 3 MV 090 MT D 205-DLM (hinged doors)
Refrigerated multideck Indiana 3 MV 090 MT D 220-DLM (sliding/hinged doors)
Indiana 3 MV 090 MT D 220-DLM
(sliding/hinged doors)
(article: 2084.MD.ХХ)
Refrigerated multideck Indiana 2 MV 090 MT D 220-DLM (hinged doors)

The Manufacturer reserves the right to make alterations in the specifications.

Specifications

Indiana 2 MV 070 MT D 205-DLM
Length without sidewalls mm 937 1250 1500 1875 2150 2500 3125 3750
Thickness of two sidewalls mm 90
Layout area (5 levels of shelves + 1 level of trays) m2 2,20 3,00 3,60 4,50 5,20 6,20 7,80 9,40
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С -1…+1/0…+2/+2…+4/+4…+6
Temperature class М1/М2/Н1
  Indiana 2 MV 080 MT D 205-DLM
Length without sidewalls mm 937 1250 1875 2150 2500 3125 3750
Thickness of two sidewalls mm 90
Layout area (5 levels of shelves + 1 level of trays)  m2 3,00 4,00 6,00 7,00 8,00 10,00 12,00
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С -1…+1/0…+2/+2…+4/+4…+6
Temperature class М1/М2/Н1
  Indiana 2 MV 080 MT D 220-DLM
Length without sidewalls mm 937 1250 1875 2150* 2500 3125 3750
Thickness of two sidewalls mm 90
Layout area (5 levels of shelves + 1 level of trays)  m2 3,00 4,00 6,00 7,00 8,00 10,00 12,00
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С −1…+1/0…+2/+2…+4/+4…+6
Temperature class М1/М2/Н1
  Indiana 3 MV 090 MT D 205-DLM
Length without sidewalls mm 937 1250 1875 2150* 2500 3750
Thickness of two sidewalls mm 90
Layout area (5 levels of shelves + 1 level of trays) mm 3,4 4,5 6,8 7,9 9 13,5
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С -1…+1/0…+2/+2…+4/+4…+6
Temperature class М1/М2/Н1
  Indiana 3 MV 090 MT D 220-DLM
Length without sidewalls mm 937 1250 1875 2150 2500 3125* 3750
Thickness of two sidewalls mm 90
Layout area (5 levels of shelves + 1 level of trays)  m2 3,40 4,50 6,80 7,90 9,00 10,63 13,50
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С -1…+1/0…+2/+2…+4/+4…+6
Temperature class М1/М2/Н1

* – it requires an additional agreement (marked in red)

The Manufacturer reserves the right to make alterations in the specifications.
