Semi-vertical cabinets Louisiana eco MSV 095 MT O 160-DLM

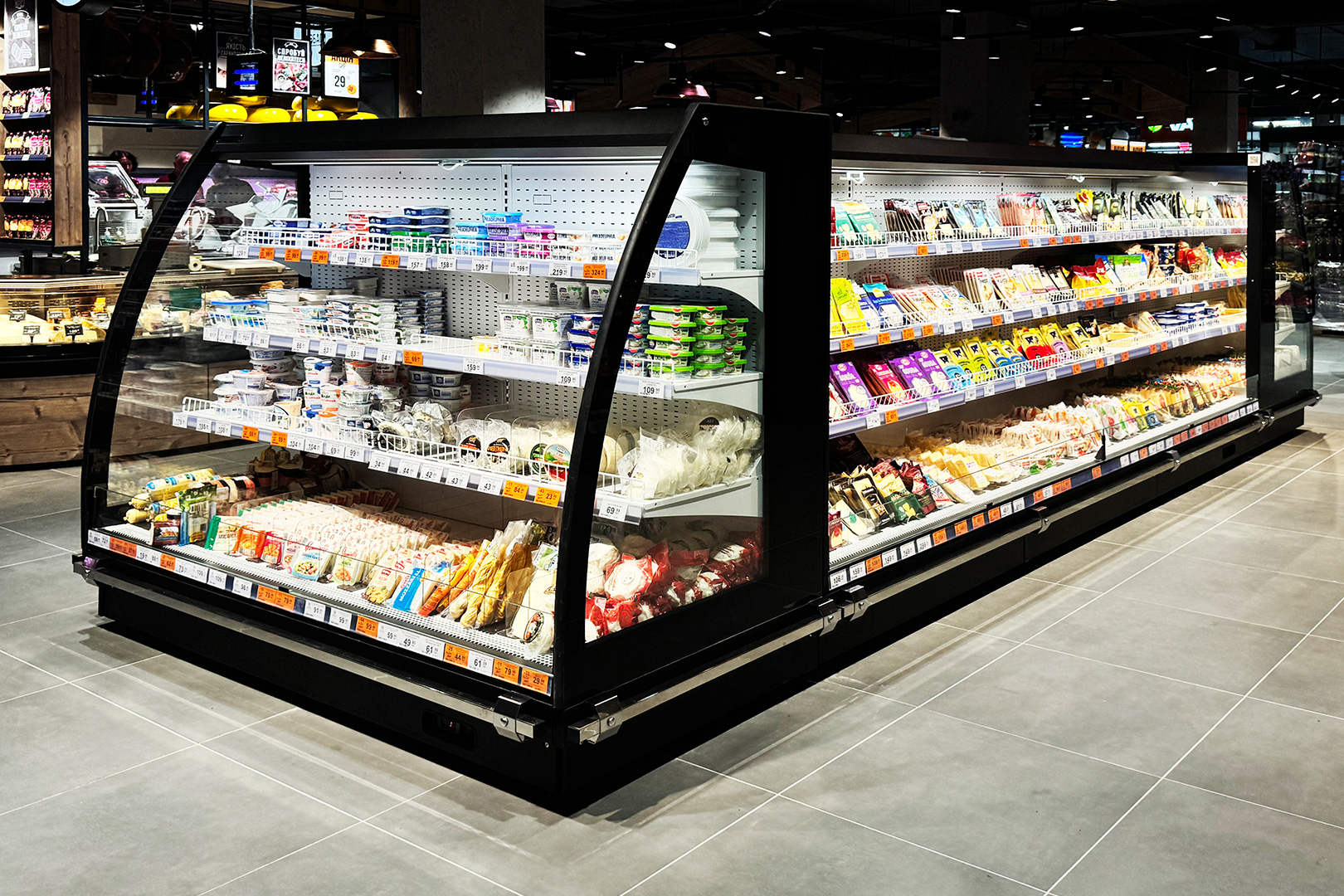

Semi-vertical counters are for the stores of any format. For creating island-type zones end-face modules are available.
  • Connects to the remote refrigeration system
  • Dynamic cooling
  • Inner enclosure LED lighting
  • Energy-efficient fans
  • Shelf system of various depth
Salami & Sausages Cheese Dairy products Ready-to-serve food
Confectionery Beverages
Information related to energy class (Ecodesign Regulation 2019/2024 and Energy Labelling Regulation 2019/2018) refers to specific product configurations. All configurations other than that presented in the website could require significantly different energy class information. For further details, either consult the European Product Database for Energy Labelling (EPREL) or contact our sales office.

TL

Visualizations and schemes

Refrigerated semi-vertical cabinets Louisiana eco MSV 095 MT O 160-DLM
Louisiana eco MSV 095 MT O 160-DLM
(article: 2015.XX.R)
Refrigerated semi-vertical cabinets Louisiana eco MSV 095 MT O 160-DLM
Refrigerated semi-vertical cabinets Louisiana eco MSV 095 MT O 200-DLM
Louisiana eco MSV 095 MT O 200-DLM
(article: 0277.XX.R)
Refrigerated semi-vertical cabinets Louisiana eco MSV 095 MT O 200-DLM
Refrigerated semi-vertical cabinets Louisiana eco MSV 105 MT O 160-DLM
Louisiana eco MSV 105 MT O 160-DLM
(article: 2011.XX.R)
(Rounded sidewall)
Refrigerated semi-vertical cabinets Louisiana eco MSV 105 MT O 160-DLM
Louisiana eco MSV 105 MT O 160-DLM
(article: 2011.XX.V)
(Straight sidewall)
Refrigerated semi-vertical cabinets Louisiana eco MSV 105 MT O 160-DLM
Refrigerated semi-vertical cabinets Louisiana eco MSV 105 MT O 200-DLM
Louisiana eco MSV 105 MT O 200-DLM
(article: 2053.XX.R)
(Rounded sidewall)
Refrigerated semi-vertical cabinets Louisiana eco MSV 105 MT O 200-DLM
Louisiana eco MSV 105 MT O 200-DLM
(article: 2053.XX.V)
(Straight sidewall)
Refrigerated semi-vertical cabinets Louisiana eco MSV 105 MT O 200-DLM
Refrigerated semi-vertical cabinets Louisiana eco MSV 105 MT O 200-DLM

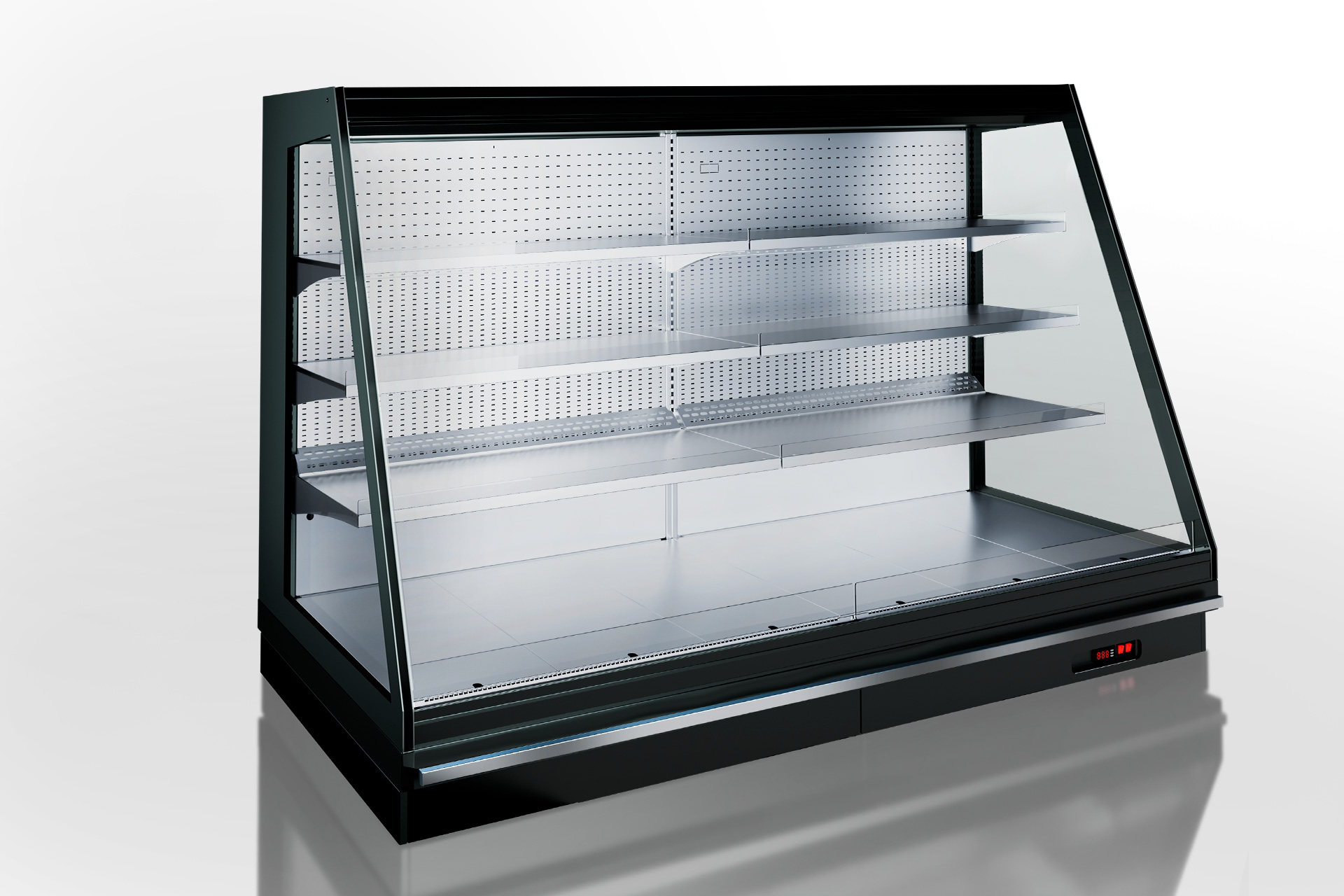

Refrigerated semi-vertical cabinets Louisiana eco MSV 115 MT O 170-DLM
Louisiana eco MSV 115 MT O 170-DLM
(article: 2091.XX.V)
(Straight sidewall)




Refrigerated semi-vertical cabinets Louisiana eco MSV 115 MT O 170-DLM


Refrigerated semi-vertical cabinets Louisiana eco MSV 115 MT O 200-DLM
Louisiana eco MSV 115 MT O 200-DLM
(article: 0223.XX.R)
(Rounded sidewall)
Refrigerated semi-vertical cabinets Louisiana eco MSV 115 MT O 200-DLM
Louisiana eco MSV 115 MT O 200-DLM
(article: 0223.XX.V)
(Straight sidewall)


Refrigerated semi-vertical cabinets Louisiana eco MSV 115 MT O 200-DLM

Refrigerated semi-vertical cabinets Louisiana eco MSV 115 MT O 200-DLM


Refrigerated semi-vertical cabinets Louisiana eco NB MSV 115 MT O 200-DLM
Louisiana eco NB MSV 115 MT O 200-DLM
(article: 0223.NB.XX.R)
(Rounded sidewall)
(the variant of modification which
enables the night blinds installation)
Refrigerated semi-vertical cabinets Louisiana eco NB MSV 115 MT O 200-DLM
Louisiana eco NB MSV 115 MT O 200-DLM
(article: 0223.NB.XX.V)
(Straight sidewall)
(the variant of modification which
enables the night blinds installation)
Refrigerated semi-vertical cabinets Louisiana eco NB MSV 115 MT O 200-DLM
Refrigerated semi-vertical cabinets Louisiana eco NB MSV 115 MT O 200-DLM



The Manufacturer reserves the right to make alterations in the specifications.

Specifications

Louisiana eco MSV 095 MT O 160-DLM End-face module
Length without sidewalls mm 937 1250 1875 2150* 2500 3750 1875
Thickness of two sidewalls mm 60
Area of display part m2 1,5 2,0 3,1 3,5 4,1 6,1 3,1
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s ≤ 0,2
Operating temperature ˚С 0…+2 / +2…+4/ +4…+6
Temperature class М1/М2/Н1
Louisiana eco MSV 095 MT O 200-DLM (Rounded sidewall) End-face module*
Length without sidewalls mm 937* 1250* 1875 2500 3750 2160*
Thickness of two sidewalls mm 90
Area of display part m2 2,3 2,9 4,4 5,9 8,9
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s ≤ 0,2
Operating temperature ˚С 0…+2 / +2…+4/ +4…+6
Temperature class М1/М2/Н1
Louisiana eco MSV 105 MT O 160-DLM (Rounded sidewall) / Louisiana eco MSV 105 MT O 160-DLM (Straight sidewall) End-face module
Length without sidewalls mm 937 1250 1875 2150 2500 3125 3750 2150
Thickness of two sidewalls mm 60
Area of display part m2 1,8 2,3 3,5 4,0 4,7 7,0 4,0
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s ≤ 0,2
Operating temperature ˚С 0…+2 / +2…+4/ +4…+6
Temperature class М1/М2/Н1
Louisiana eco MSV 105 MT O 200-DLM (Rounded sidewall) / Louisiana eco MSV 105 MT O 200-DLM (Straight sidewall) End-face module*
Length without sidewalls mm 937* 1250* 1875* 2150 2500 3125 3750 –
Thickness of two sidewalls mm 60
Area of display part m2 – – – – 6,6 10 –
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s ≤ 0,2
Operating temperature ˚С +2…+4/ +4…+6
Temperature class М2/Н1
Louisiana eco MSV 115 MT O 170-DLM
Length without sidewalls mm 937* 1250* 1875* 2150* 2500 3750*
Thickness of two sidewalls mm 60
Area of display part m2 2 2,7 4 4,7 5,4 8,1
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s ≤ 0,2
Operating temperature ˚С 0…+2 / +2…+4/ +4…+6
Temperature class М1/М2/Н1
Louisiana eco MSV 115 MT O 200-DLM End-face module* Louisiana eco NB MSV 115 MT O 200-DLM End-face module*
Length without sidewalls mm 950 1250 1875 2500 3750 2160* 950 1250 1875 2500 3750 2160*
Thickness of two sidewalls mm 70 70
Area of display part m2 2,8 3,6 5,4 7,3 10,9 6,3 2,8 3,6 5,4 7,3 10,9 6,3
Ambient temperature ˚С ≤ +25 ≤ +25
Humidity % ≤ 60 ≤ 60
Air velocity m/s ≤ 0,2 ≤ 0,2
Operating temperature ˚С 0…+2 / +2…+4/ +4…+6 0…+2 / +2…+4/ +4…+6
Temperature class М1/М2/Н1 М1/М2/Н1

* – it requires an additional agreement (marked in red)
