Indiana eco cube 2 ASV 070 MT D A

/, Indiana eco cube 2 ASV 070 A/Indiana eco cube 2 ASV 070 MT D A
Indiana eco cube 2 ASV 070 MT D A

Visualizations and schemes

  • Fits with plug-in
  • Dynamic cooling
  • Various depth shelf system
Salami & Sausages Cheese Dairy products Ready-to-serve food
Confectionery Beverages
Information related to energy class (Ecodesign Regulation 2019/2024 and Energy Labelling Regulation 2019/2018) refers to specific product configurations. All configurations other than that presented in the website could require significantly different energy class information. For further details, either consult the European Product Database for Energy Labelling (EPREL) or contact our sales office.

Indiana eco cube 2 ASV 070 MT D A

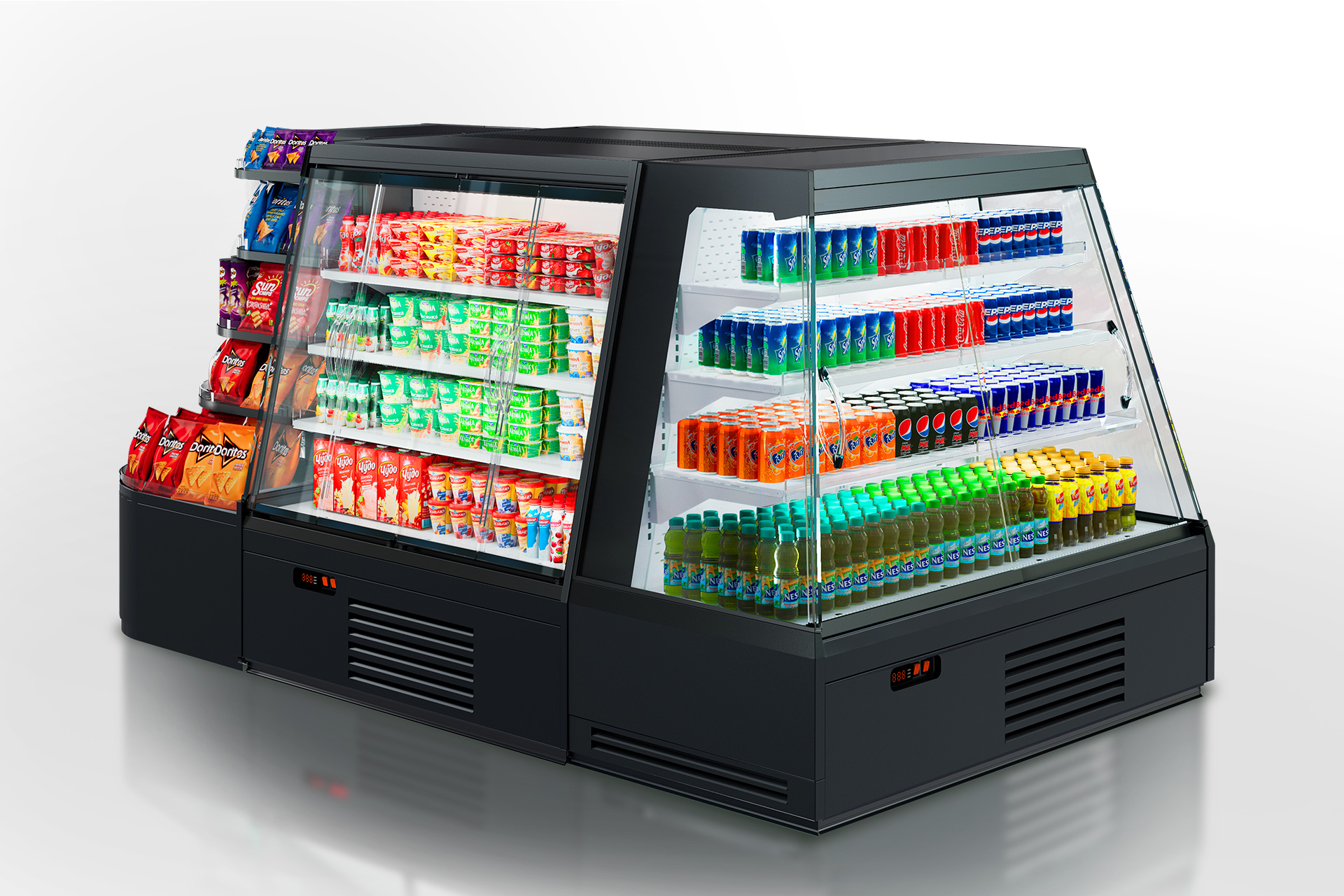

 Island version
Top view
Semi-vertical cabinets Indiana eco cube ASV 070 MT D 140 DLA
Indiana eco cube ASV 070 MT D 140 DLA
(article: 2090.А.ХХ)
Semi-vertical cabinets Indiana eco cube 2 ASV 070 MT D 140 DLA
Semi-vertical cabinets Indiana eco cube ASV 070 MT D 140 DLA 150 TL
Indiana eco cube 2 ASV 070 MT D 140 DLA 150 TL
(article: 2090.АTL.ХХ)
Semi-vertical cabinets Indiana eco cube ASV 070 MT D 140 DLA 150 TL
Front view
Semi-vertical cabinets Indiana eco cube 2 ASV 070 MT D 140 DLA 150 TL
Semi-vertical cabinets Indiana eco cube NSV 070 O 140-ES-90-left angular elements
Indiana eco cube 2 NSV 070 O 140-ES-90
(article: 2090.18.L.00)
(left angular elements)
Semi-vertical cabinets Indiana eco cube NSV 070 O 140-ES-90-right angular elements
Indiana eco cube 2 NSV 070 O 140-ES-90
(article: 2090.18.R.00)
(right angular elements)
Semi-vertical cabinetsа Indiana eco cube 2 NSV 070 O 140-ES-90
Semi-vertical cabinets Indiana eco cube NSV 070 O 140-ES-90 Semi-vertical cabinets Indiana eco cube NSV 070 O 140-ES-90
Front view Top  view

The Manufacturer reserves the right to make alterations in the specifications.



Specifications

Indiana eco cube  2ASV 070 MT D 140 DLA (2090) Indiana eco cube 2 ASV 070 MT D 140 DLA 150 TL
(End-face module) (2090)
Length without sidewalls mm 675 937* 1250 1500* 1875* 2500* 3750* 1500
Thickness of two sidewalls mm 60
Area of display part m2 0,96 1,44 1,93 2,31 2,89 3,85 5,78 2,07
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С 0…+2 / +2…+4
Temperature class М1/М2
Indiana eco cube 2 NSV 070 O 140 (2090.18)
Angular element ES-90
Area of display part m2 0,7

* – it requires an additional agreement (highlighted in red)
The Manufacturer reserves the right to make alterations in the specifications.
